Place of Origin: | Guangdong, China |
---|---|
Brand Name: | SHUQEE |
Certification: | TUV, ISO9001, CMA, CQC, CE |
Model Number: | SQ-M042E |
Minimum Order Quantity: | 1 SET |
Price: | $ 20000 - $ 50000 |
Packaging Details: | 4D Movie Theater Safe package: Bubble Pack +stretch films carton+ wood fram Safe package: Bubble Pack +stretch films carton+ wood frame |
Delivery Time: | 15 DAYS |
Payment Terms: | L/C T/T |
Supply Ability: | 500 SETS/MONTH |
Simulator Movie: | 3D Long Stereo Movie For 4D Movie Theater | Screen: | Metal Flat Screen , Arc Screen |
---|---|---|---|
4D Movie Theater Simulator Effect: | Rain,wind,lightning,fog,smell Etc | Material: | Genuine Leather + PU |
4D Movie Theater Seat Weight: | 180 Kg | Audio: | JBL, YAMAHA , SHUQEE For 4D Movie Theater |
4D Movie Theater Dynamic System: | Electronic | Projector: | Panasonic , Hitachi , NEC , |
Color: | Black | 4DM Seat Capacity: | 3 Seats/Platform, 4 Seats/Platform, 5 Seats/Platform |
High Light: | kid movies in theaters,cinema movies theater |

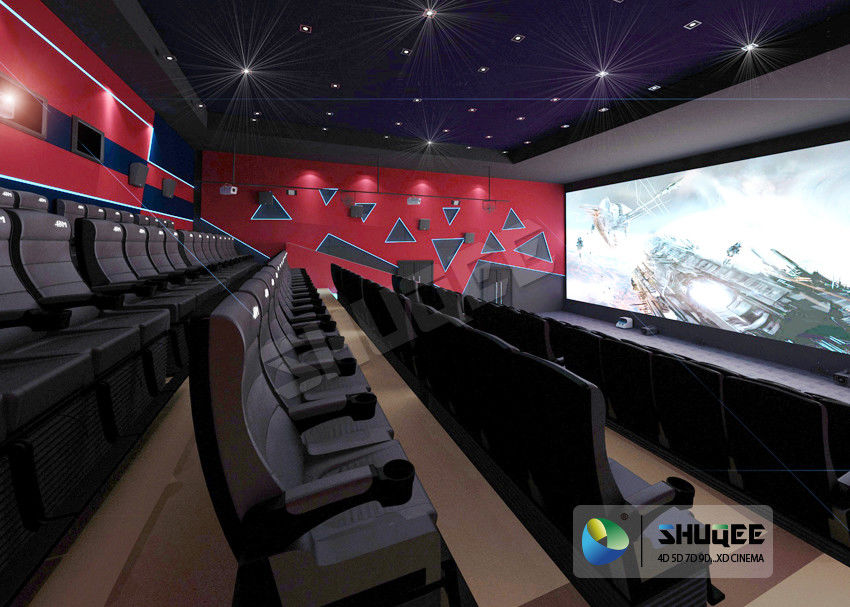

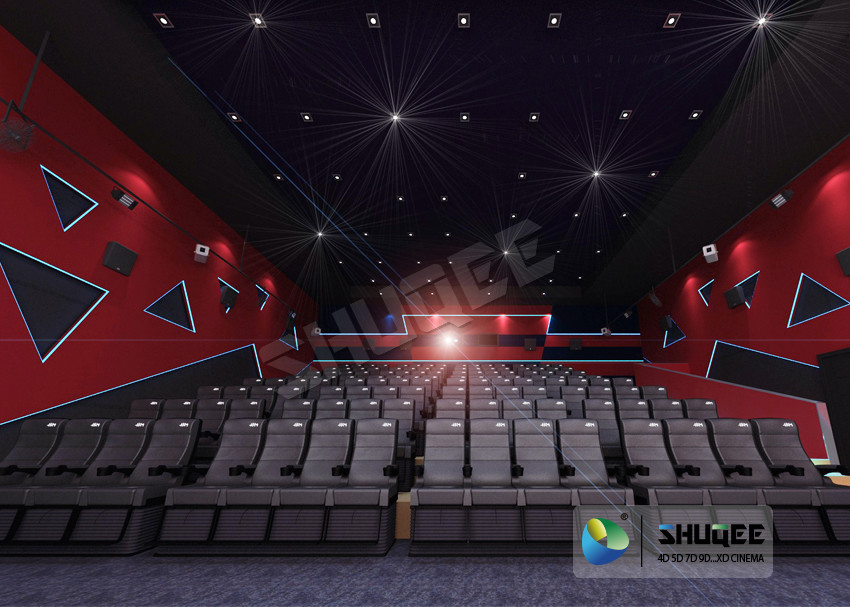

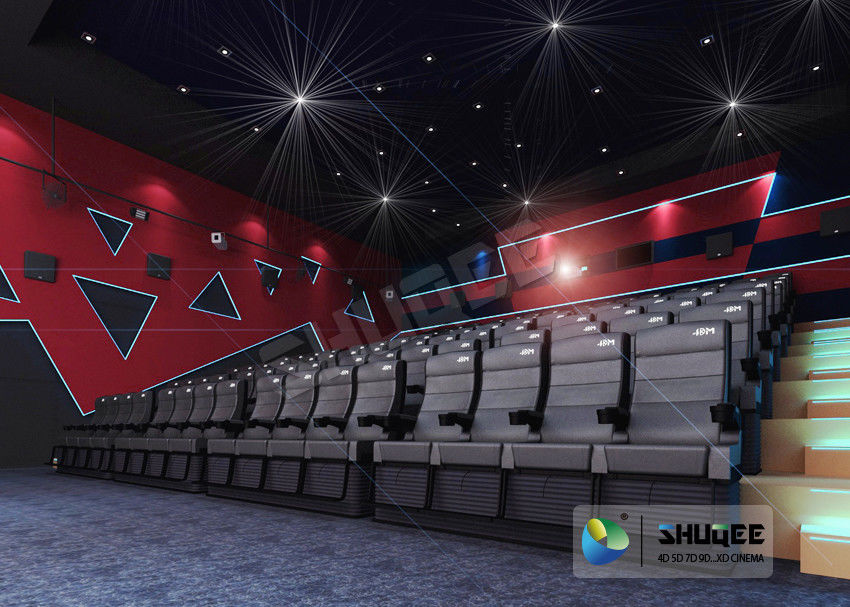

Self-developed Time Code Collecting 4D Movie Theater With Ultra-silence, Energy Saving And Durable
Different from 4D theater, which add movement, wind, vibration, light, fog and other physical effect technology, Apart from sight and hearing, Shuqee 4DM Theater will supply audience multidimensional movie experience ,
For example: audience can feel the free flight of spacecraft, the excitement of car chasing, the explosions in the war, or the strong wind when dinosaur passes by.
4D Movie Theater of the 4D Motion Seat:
Type | SQ-M032E | SQ-M042E | SQ-M052E |
Tilt Angle | 11° | 11° | 11° |
Swing Angle | 5° | 5° | 4° |
4DM Vibration Rate | 12Hz | ||
Size(L*W*H) mm | 1785*895*1355 | 2335*895*1355 | 2895*895*1355 |
Row Spacing | ≥1300mm | ||
Column Distance | ≥100mm | ||
4DM Seat Capacity | 3 Seats/Platform | 4 Seats/Platform | 5 Seats/Platform |
Seat to Wall Distance | ≥100mm | ||
The Last Row Distance | ≥1700mm | ||
Concrete Thickness | ≥100mm | ||
Ground Bearing | ≥350kg/㎡ | ||
4D Movie theater Seat Effect | Low frequency vibration, push back, leg sweep, air blast | ||
Environment Effects | Wind, snow, bubble, lightning, rain, smoke | ||
Synchronized Method | LTC/UDP(Possess with LTC decoding system invention paten) | ||
Movement Range | Leakage protection air switch , every 4d movie theater equipment electric grounding, no waterway in seats, water proof control box |
What Is The Three Ultra Feature In The 4D Cinema?
“Three Ultra Features”: Ultra silence, Ultra energy saving, Ultra durable
1.4DM seats applying FR(Flexible Rotation) crank system, performing without abnormal sound, Ultra silence.
2.Single set of 4DM seats only takes 0.1KW (kilowatt) per movie on average, over qualified to national Energy Efficiency Standard, Ultra energy saving.
3.4DM seats need to be non-stop tested for at least 168 hours before shipping, able to run for ten years and free of failure, Ultra durable.
Ltc Time Code Implements Synchronization Control
We have obtained the patent for LTC code, which is our core technology.SHUQEE technology acquisition software directly from the film projector server acquisition time code, ensures the movement of 4seats and film to achieve "zero error" perfect synchronization.
Equipped with digital technology to capture the film's special effects and action coupled with LTC code using
synchronized to the frame, breakpoint play, loyal to the original intent of the movie, does not destroy the theme of the film expression; through simple hardware device, you can achieve your movies and dynamic seat in perfect
sync chair and environmental effects.
4D Theater Equipment Chair Special Effects:
1. Spray air to face: Compressed air directly to the audience`s face, simulate the explosion impact, the bullet flying etc. . The jet effect is sprayed by air nozzle in chair, spray to face and neck
2. Movement: Up and down, left and right, forward and backward, simulate movement of lifting, rolling, and pitching.
3.Vibration: Built-in seat cushion inside, the function can push up and down, realize the vibration of 12Hz,make the audience feel the up and down "vibration" feeling.
4. Leg tickle: Each small elastic air hose under the seat suspension will pat the audience calf place; it can simulate the animals to drill leg of the audience.
5.Push back: The back of the seat with the new equipment, the effect can push forward, realize 5Hz the vibration frequency, make the audience feel on the back of the suddenly "vibration”, have intense "Push Back" and " Electric shock" feeling.
Why Does 4DM Seats Attract More People ?
4DM cinema is a kind new experience to subvert the traditional simple way of viewing movies. Lead the audience, from the viewer into the role of the film, participants with advanced technology. Different from 4D theater, which add movement, wind, vibration, light, fog and other physical effect technology, Apart from sight and hearing, Shuqee 4DM Theater will supply audience multidimensional movie experience ,
For example: audience can feel the free flight of spacecraft, the excitement of car chasing, the explosions in the war, or the strong wind when dinosaur passes by.
4D Movie Theater Business Distribution
The company's 4D Movie Theater through the global marketing network, to meet the needs of the domestic market at the same time, has been exported to more than 40 countries and regions, widely used in cinemas, scenic areas, commercial centers, theme parks, science exhibitions, education and scientific research and other fields.
